Effortless Kubernetes Monitoring and Bottleneck Detection using eBPF 🐝

Effortless Kubernetes Monitoring and Bottleneck Detection using eBPF 🐝

Efficiently monitoring Kubernetes clusters is essential for maintaining optimal performance. In this article, we will explore how eBPF can be utilized for real-time monitoring and bottleneck detection in Kubernetes, ensuring seamless operations without service interruptions.

Within this piece, we will monitor a Kubernetes cluster, detect bottlenecks and automatically create K8s service map using eBPF without service restarts, code instrumentation or side-cars. We will deploy Anteon Self-hosted platform from AWS Marketplace with a single click. We will spin up a Kubernetes cluster on AWS using eksctl and deploy a sample application to the cluster. Our eBPF Agent (Alaz) collects metrics and network traffic from the Kubernetes cluster and sends them to the Anteon Self-hosted platform. Then we will use Anteon Self-hosted platform to monitor the cluster and detect bottlenecks. All the files used in this article can be found in here.

Prerequisites

What is eBPF?

eBPF (extended Berkeley Packet Filter) is a technology that allows you to run sandboxed programs in the Linux kernel without changing kernel source code or loading a kernel module. eBPF programs are written in a restricted C-like language and compiled into bytecode that is verified and translated into native code that can be executed safely in the kernel. The verifier ensures that the program is safe to run, will not crash the kernel and prevents infinite loops. eBPF programs can be attached to various kernel hooks and run when an event occurs. For example you can attach an eBPF program to sys_enter_connect tracepoint to detect TCP connections. eBPF programs can be used for tracing, networking, security, and more. You can find more information about eBPF here.

Why Use eBPF for Kubernetes Monitoring?

eBPF enhances Kubernetes monitoring by providing real-time, low-overhead insights directly from the kernel, enabling efficient detection of performance issues and security threats. Its ability to capture granular data without altering application code ensures non-intrusive and detailed observability. This helps in swiftly identifying bottlenecks, optimizing resource usage, and maintaining robust security across Kubernetes clusters, ultimately ensuring smoother and more reliable operations.

The use of eBPF in Kubernetes monitoring brings several advantages. Firstly, eBPF Kubernetes solutions offer seamless integration with existing systems, making it easier for DevOps teams to deploy and manage without significant overhead. Additionally, eBPF Kubernetes monitoring tools provide deep visibility into network traffic and system calls, allowing for precise ebpf k8s analysis.

One of the standout features is the capability to run eBPF examples that illustrate various monitoring scenarios, helping teams understand and implement effective monitoring strategies. With Kubernetes eBPF technology, users can perform advanced tasks such as tracking latency, packet drops, and system resource usage, all of which are critical for maintaining optimal performance in Kubernetes environments.

Incorporating k8s eBPF into your monitoring toolkit not only improves operational efficiency but also enhances security posture by enabling proactive threat detection and mitigation. By leveraging the power of eBPF Kubernetes monitoring, organizations can achieve a comprehensive view of their cluster's health and performance, leading to more informed decision-making and better resource management.

What is Anteon Self-hosted?

Find Kubernetes service Bottlenecks Easily

Anteon Self-hosted is a observability and performance testing platform that provides real-time visibility into Kubernetes clusters. Without any effort you can start to monitor and detect bottlenecks with Anteon Self-hosted under 5 minutes. The Anteon Self-hosted platform provides real-time visibility into Kubernetes clusters and helps you to detect bottlenecks and golden signals like slow SQL queries, 5xx errors, idle K8s services, slow HTTP requests, CPU, Memory, Disk and Network and more. It’s also natively integrated with Anteon Performance Testing solution and you can run performance tests against your K8s services and detect bottlenecks.

What is Anteon eBPF Agent (Alaz)?

Our eBPF Agent (Alaz) is an open-source tool that collects Kubernetes cluster metrics and network traffic with eBPF without code instrumentation or service restarts, and sends them to the Anteon Self-hosted platform. Unlike sidecars, it doesn’t add overhead to the cluster. Alaz is easy to deploy as a DaemonSet, and it has a limited resource usage of up to 1 CPU core and 1Gi memory.

In the Alaz eBPF directory, you can find eBPF programs written in C using libbpf. These programs are attached to kernel tracepoints and uprobes to capture network traffic on the K8s cluster. Alaz eBPF programs are compiled using the Cilium bpf2go package, which generates helper files in Go for interacting with eBPF programs. We embed these helper files and load them into the kernel using the Cilium eBPF package. You can find more architecture details about Alaz here.

Deploy Anteon Self-hosted to AWS

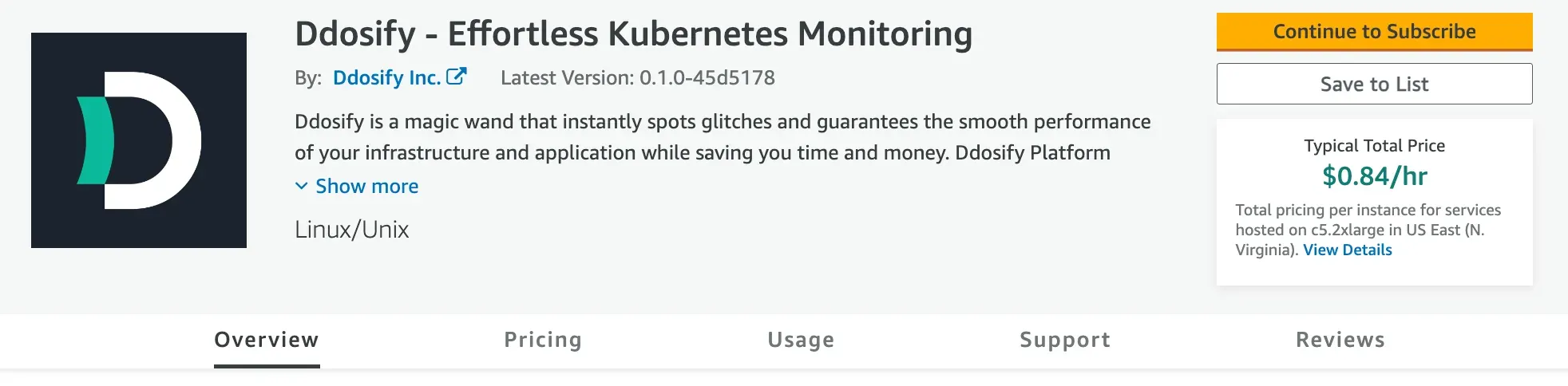

Anteon - Effortless Kubernetes Monitoring AWS Marketplace

First, we will deploy Anteon Self-hosted to AWS using AWS Marketplace. You can also install Anteon Self-hosted platform on your servers that is not on AWS. Check Anteon Self-hosted documentation for more information.

Click Continue to Subscribe button and then Configure This Software. As a region, you can choose any region that is close to you. Anteon supports all AWS regions. We will use US West (N. California) in this article. Click Continue to Launch button.

  • Choose Action: Launch from Website

  • EC2 Instance Type: c5.2xlarge (c5.xlarge and c5.2xlarge are also supported)

  • VPC Settings: Leave as Default VPC

  • Subnet Settings: Leave as Default Subnet

  • Security Group Settings: Click Create New Based On Seller Settings. Anteon uses 22 for SSH access and 8014 for Anteon Self-hosted platform.

  • Give a name and description to the security group

  • Click Save button

  • Key Pair Settings: Choose an existing key pair or create a new one

  • Click Launch button

Now you can see your Subscriptions on AWS Subscriptions Page. Click the Manage button of Anteon - Effortless Kubernetes Monitoring. Click Actions button and then click View Instances. Click Access Software button, and you will see the Anteon Self-hosted platform.

Selfhosted Dashboard

Create a Kubernetes Cluster on AWS using eksctl

For testing, we will use eksctl to create a Kubernetes cluster on AWS EKS. You can also deploy Anteon Self-hosted to other K8s providers like GKE, AKS, minikube, k0s, etc. You can find more information about eksctl here. First, we will create a K8s cluster configuration file:

apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig

metadata:
  name: anteon-k8s-test-blog
  region: us-west-1
vpc:
  clusterEndpoints:
    publicAccess: true
    privateAccess: false

managedNodeGroups:
  - name: managed-ng-anteon-k8s-test-blog
    amiFamily: "AmazonLinux2"
    instanceType: c5.large
    minSize: 1
    maxSize: 3
    desiredCapacity: 2
    volumeSize: 30
    iam:
      attachPolicyARNs:
        - arn:aws:iam::aws:policy/AmazonEKSWorkerNodePolicy
        - arn:aws:iam::aws:policy/AmazonEKS_CNI_Policy
        - arn:aws:iam::aws:policy/AmazonEC2ContainerRegistryReadOnly
      withAddonPolicies:
        ebs: true
addons:
- name: vpc-cni
  serviceAccountRoleARN: arn:aws:iam::aws:policy/AmazonEKSCNIAccess
- name: aws-ebs-csi-driver
  serviceAccountRoleARN: arn:aws:iam::aws:policy/AmazonEKS_CSI_Driver

It will generate a K8s cluster with two nodes on AWS. Now, create a Kubernetes cluster using eksctl:

eksctl  create  cluster  -f  cluster.yaml

You need to have access to the AWS account to create a Kubernetes cluster. For more information, you can check eksctl documentation.

After the cluster is created, we will update the KUBECONFIG environment variable to point to the new cluster:

aws  eks  update-kubeconfig  --name  anteon-k8s-test-blog  --region  us-west-1

Now you can check the nodes of the Kubernetes cluster, and you should see two nodes:

kubectl  get  nodes

Deploy a Sample Application to the Kubernetes Cluster

We will deploy simple two microservices and PostgreSQL to the Kubernetes cluster.

Services:

  • testserver - A simple Python Django web application for getting currencies, make exchanges and get exchange rates. It uses PostgreSQL as a database.

  • currencies - A simple Python Flask web application that returns currency rates. testserver service calls currencies service to get currency rates with HTTP requests.

  • postgres - PostgreSQL database.

Deployment:

Run the following command to deploy the sample services to the Kubernetes cluster. This command will create a namespace named testserver and deploy the services to this namespace:

kubectl  apply  -f  https://raw.githubusercontent.com/ddosify/blog_examples/main/006_effortless_kubernetes_monitoring_using_ebpf/sample_apps.yaml

After few seconds, you should see that all the pods are running:

kubectl  get  pods  -n  testserver

Access the testserver service by forwarding the port 8200 to the local machine:

kubectl  port-forward  --namespace  testserver  service/testserver-service  8200:8200

Now you can access the testserver service from your local machine. To get the currency rates, you can send a request to the /currencies/ endpoint. testserver service calls currencies service to get currency rates with HTTP requests:

curl  http://localhost:8200/currencies/

To get the exchange rate, you can send a request to the /exchange_rate/ endpoint. It returns the exchange rate between two currencies:

curl  http://localhost:8200/exchange_rate/USD/EUR/

It also has a dummy endpoint for testing the HTTP status codes. It returns the HTTP status code that you give as a parameter:

curl  http://localhost:8200/status/500/

Generate Load to the Kubernetes Cluster

We will use Anteon Engine to generate load to the sample application that we deployed to the Kubernetes cluster. Anteon Engine is an open-source and high-performance load testing tool that allows you to generate load to your services. Install it with the following command:

curl  -sSfL  https://raw.githubusercontent.com/ddosify/ddosify/master/scripts/install.sh | sh

After the installation, you can run the following command to generate load to the testserver service. This command will send 1000 GET requests for 10 seconds to the testserver currencies endpoint:

anteon  -t  http://localhost:8200/currencies/  -n  1000  -d  10  -m  GET

You can add --debug flag to the anteon command to send one request and print curl-like verbose result.

Send 200 GET requests for 10 seconds to the testserver exchange rate endpoint:

anteon  -t  http://localhost:8200/exchange_rate/USD/EUR/  -n  200  -d  10  -m  GET

Send 100 GET requests for 10 seconds to the testserver status endpoint. This endpoint returns the HTTP status code that you give as a parameter. Anteon Engine will send random HTTP status codes with dynamic parameters:

anteon  -t  http://localhost:8200/status/{{_randomInt}}/  -n  100  -d  10  -m  GET

Monitor the Kubernetes Cluster with Anteon Self-hosted and Alaz

Now we will monitor the Kubernetes cluster with Anteon Self-hosted and Alaz. First, we will create a new cluster on Anteon Self-hosted. Click Observability on the left menu and then click + Add Cluster button. Give a name to the cluster and click Save button.

After the cluster is created, you will see the Alaz installation instructions.

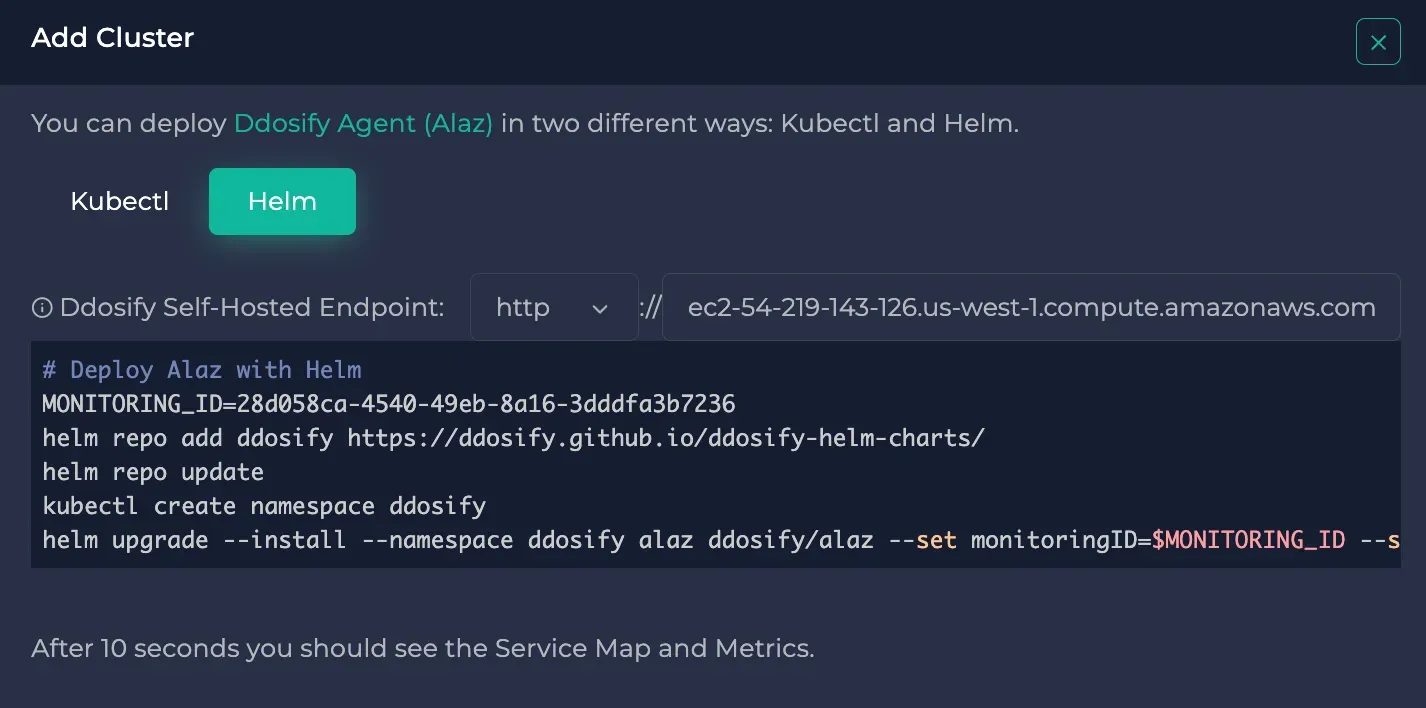

Anteon Alaz Agent Instructions

We will use the helm installation method. You can also install it with kubectl. These commands will install Alaz to the Kubernetes cluster by setting the MONITORING_ID and Anteon Self-Hosted API URL. MONITORING_ID is the unique identifier of the cluster on Anteon Self-hosted. Anteon Self-Hosted API URL is the URL of the Anteon Self-hosted platform. Alaz sends metrics and service traffic to this URL. For detailed installation instructions, you can check Alaz installation documentation.

Alaz eBPF agent runs as a DaemonSet on the Kubernetes cluster. It will collect metrics and network traffic from the cluster and send them to the Anteon Self-hosted platform. You don’t need to change your application code or restart your K8s services, and it doesn’t add overhead to the cluster like sidecars.

After few seconds, you should see your K8s cluster on the Anteon Self-hosted platform. On the Metrics tab you can see the CPU, Memory, Disk and Network usage of the cluster.

Anteon Kubernetes Metrics

On the Service Map tab you can see the K8s service map. You can see the K8s resources like services, deployments, pods and their relations. The lines between the resources show the traffic between them. The thicker the line, the more traffic between the resources. The more red the line, the more latency between the resources. You can see the latency and RPS between the resources by hovering ℹ️ over the line.

Anteon Kubernetes Service Map

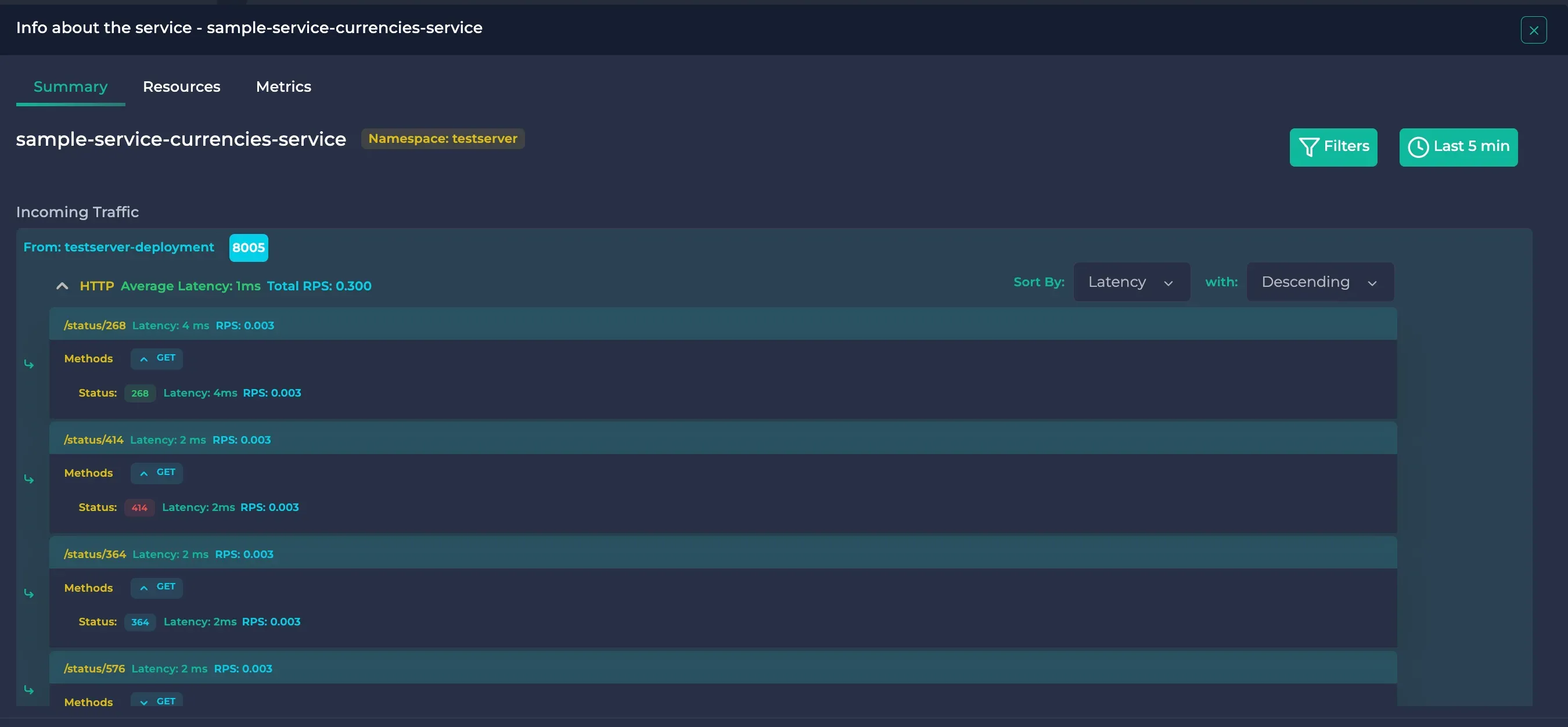

You can also see the K8s resource (deployment, service, pod, etc.) details and the golden signals like slow SQL queries, 5xx errors, idle K8s services, slow HTTP requests, CPU, Memory, Disk and Network and more.

Anteon Kubernetes Resource Details

So you can easily find the bottlenecks on your K8s cluster with Anteon Self-hosted platform and eBPF Agent - Alaz. For example one service is too slow and increasing the latency of other services. You can see the slow HTTP requests on the Anteon Self-hosted platform. Or you can see the slow SQL queries and 5xx errors on the Anteon Self-hosted platform.

Conclusion

In this article, we used eBPF to monitor Kubernetes cluster and detect bottlenecks. We deployed Anteon Self-hosted platform from AWS Marketplace with a single click. Our eBPF Agent (Alaz) collects metrics from a Kubernetes cluster and sends them to the Anteon Self-hosted platform without instrumentation or service restarts. Then we used Anteon Self-hosted platform to monitor the cluster and detect bottlenecks.

⭐️ If you found Anteon Self-hosted platform useful, please star our GitHub repository. You can also check Anteon eBPF Agent (Alaz).
